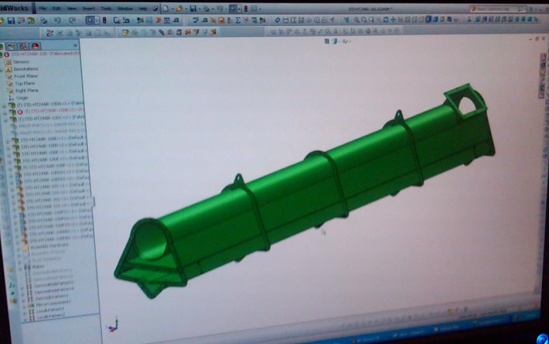

The pipe conveyor was rendered in 3D for production line planning

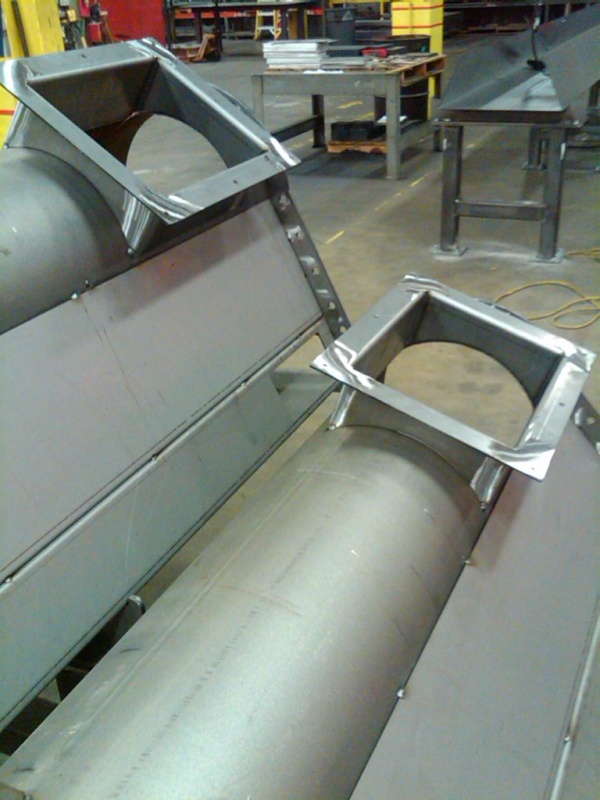

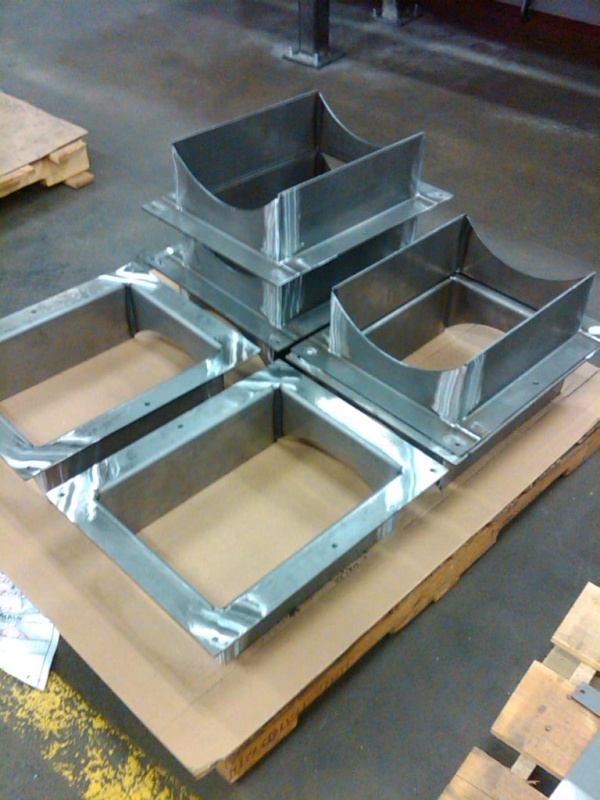

The tube entry portals were formed and welded

The tube portals welded to the pipe

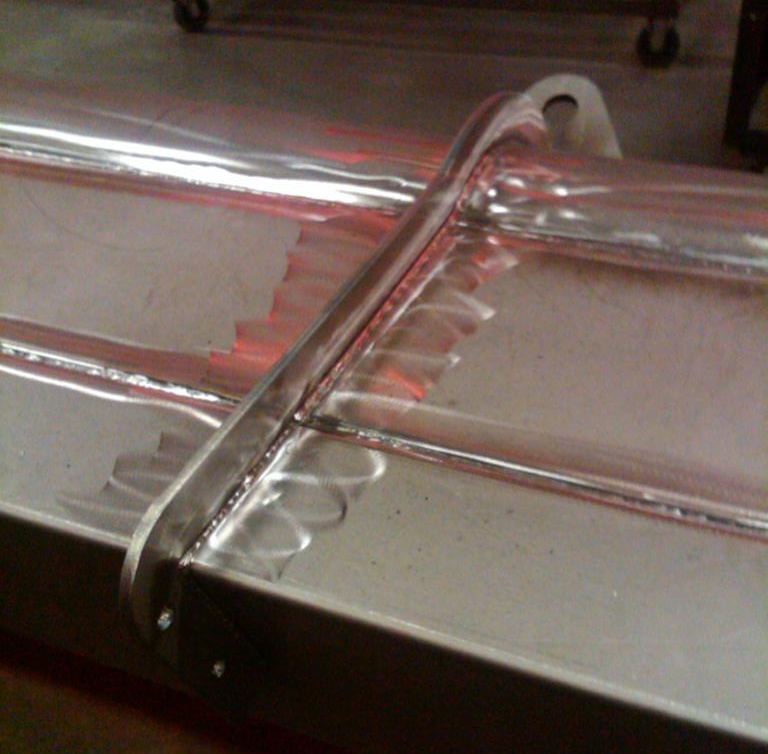

Welding details during grinding process

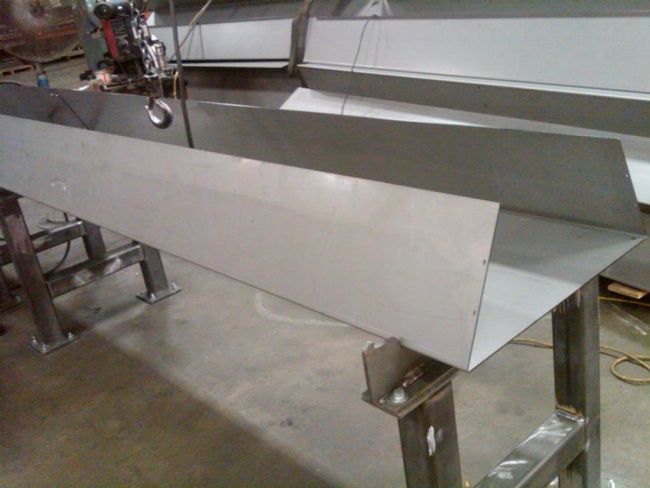

The pipe housing and plenum base were formed on the brake press

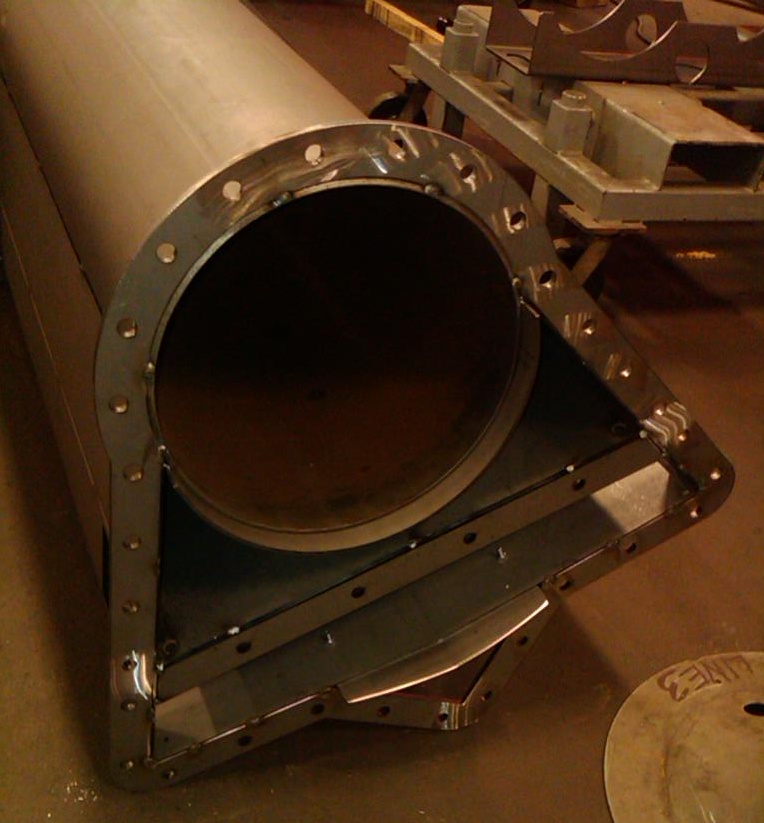

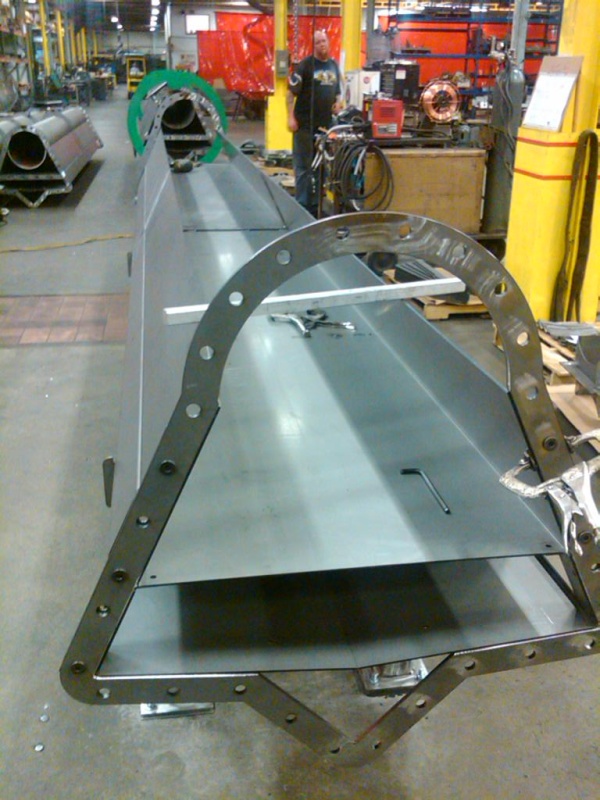

The ends attached to the plenum channel and pipe housing

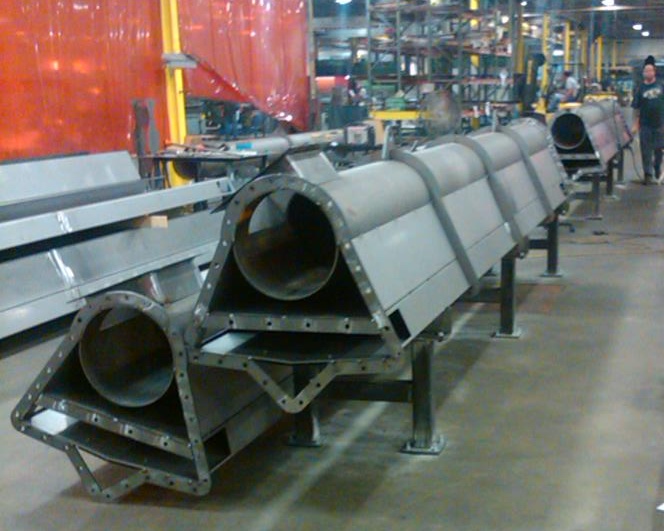

Another angle of the production line

The pipe was welded to the plenum base and housing

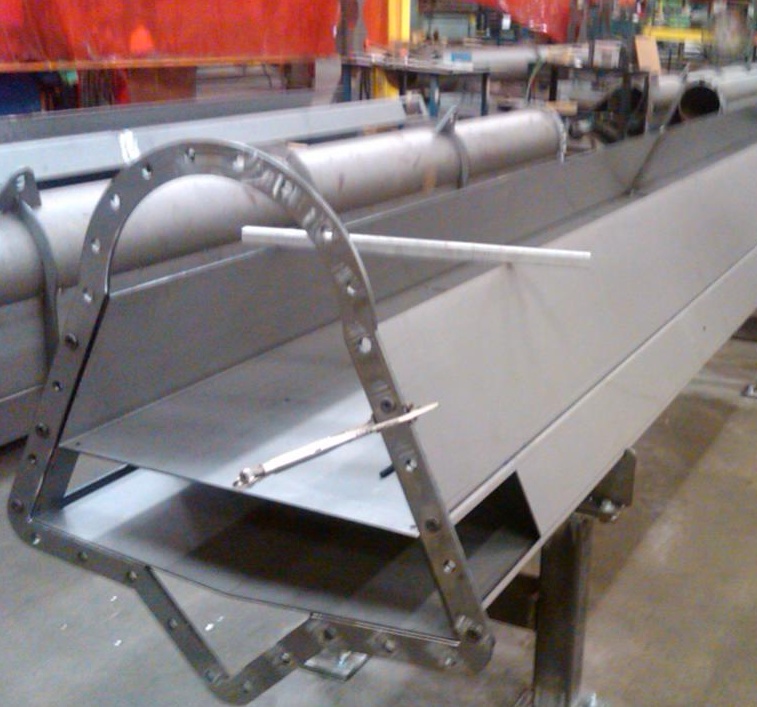

Details of the pipe conveyor with the bolting assembly attached

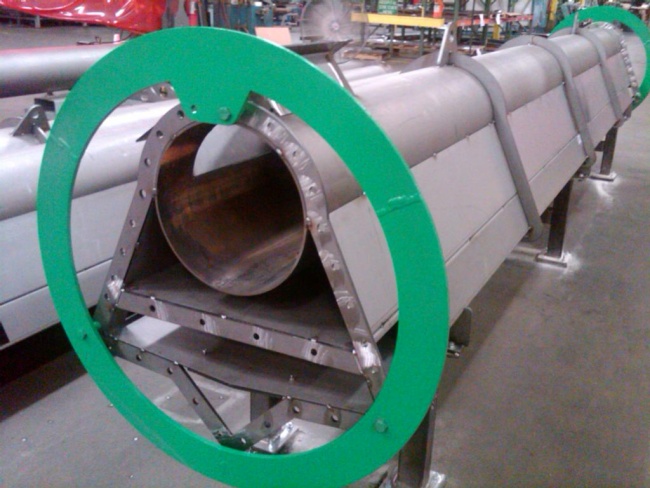

Special manufacturing fixture was attached to give 360* access to the production team.

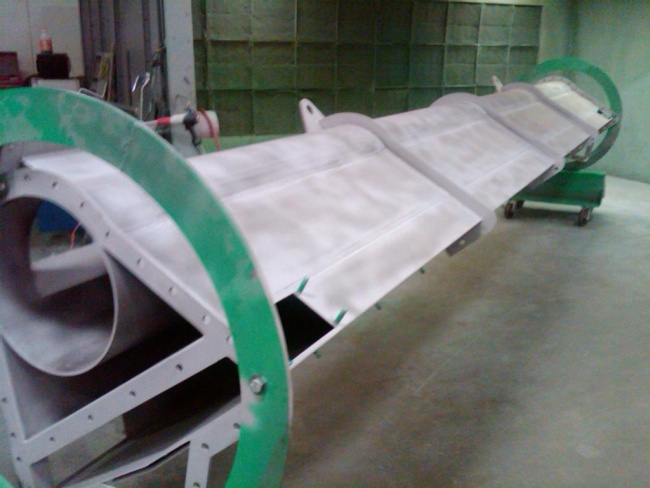

Each unit was sandblasted in preparation for on-site powder coating

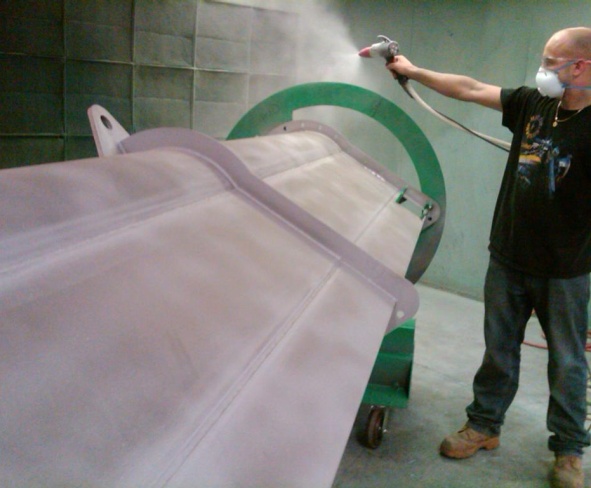

Customized urethane color mix was applied in our facility

Units were attached to custom shipping brackets for truck transport to freight ships for overseas travel.
