Coke Transfer Chute for Mining Operation Conveyor System

CAPABILITIES

.: Curved Staircases

.: Bulk Material Handling

.: Stainless Steel Doors

.: ASME Tanks & Pressure Vessels

.: Pump & Vessel Skids

.: Retail Fixtures & Displays

.: Chutes & Hoppers

.: Clean Rooms

.: Carbon & Stainless Fabrications

PORTFOLIOS

.: Air Ride Belt Conveyor

.: Aluminum Melting Furnace

.: Mining Transfer Chute

Follow us on

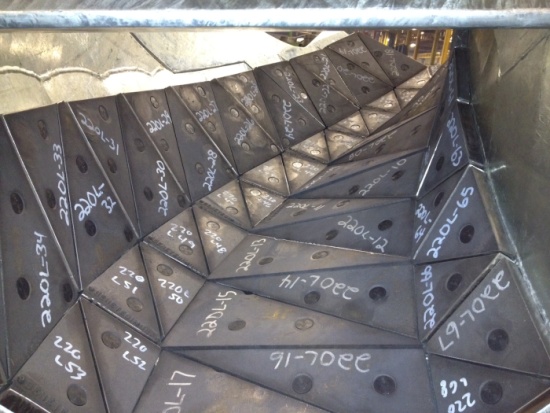

Mining operations have complicated bulk material handling needs.  The interior lining of transfer chutes have to possess extremely high durability.  The main shell of this chute was constructed from 1/4” mild steel with 3/8” mild steel flanges.  The shell was then hot dip galvanized.  The triangular parts in the center of the chute are 1” thick “White Iron” cast alloy wear liners.  This material is not formable so the triangular pattern was developed here to follow a curved concept design from our customer.  The plates were cut using our high def. plasma machine.  The other flat liner shown in the picture is 3/8” chromium carbide overlay on 3/8” A36 substrate (3/4” thick. overall).  This material was also cut using the high def. plasma. and is more commonly used in coke/coal handling.
