Enclosed Air Ride Belt Conveyor System with Plenums for Sugar Processing Facility

CAPABILITIES

.: Curved Staircases

.: Bulk Material Handling

.: Stainless Steel Doors

.: ASME Tanks & Pressure Vessels

.: Pump & Vessel Skids

.: Retail Fixtures & Displays

.: Chutes & Hoppers

.: Clean Rooms

.: Carbon & Stainless Fabrications

PORTFOLIOS

.: Air Ride Belt Conveyor

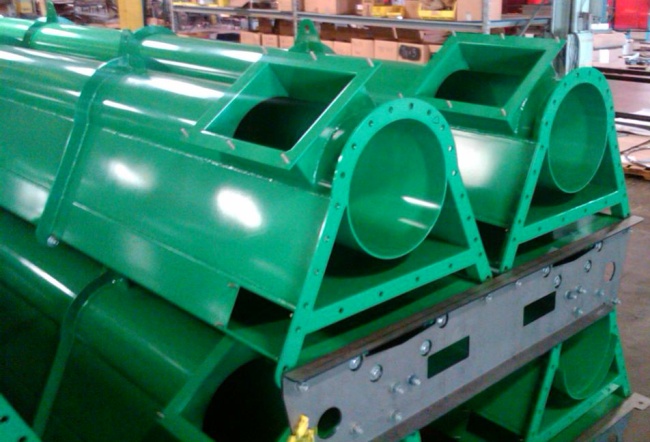

We fabricated and shipped out a 1200 ft. enclosed air ride belt pipe conveyor system to Guatemala for the Cargill Corporation. Customer handled the on-site installation in a sugar processing facility. The pipe housing and plenum base were manufactured of 10 ga. carbon steel supporting 16" diameter Schedule 40 pipe. We designed a special fixture to attach to the ends of each unit so the manufacturing team could have 360* access to all areas of the unit for welding, grinding, drilling, sandblasting and powder coating.

CONVEYOR DESIGN CRITERIA
Conveyor Type	Enclosed Air Ride Belt with Plenums
Platform Material	10 ga. Carbon steel
Pipe Material	16” Schedule 40 pipe
Material	Refined Sugar
Size	Granular
Density	50 lbs/cu ft
Handling Rate	72 STPH
Belt Width	24”
Belt Speed	200 FPM
Troughing Angle	90 degrees
Ambient Operating Temp. Range	-20* F to +115* F
Conveyor Lengths	140’ 1200’
Engineering	3D Manufacturing prints Custom manufacturing process fixtures
Production Processes	Cutting Welding Grinding Drilling Tapping Sandblasting
Finish	Custom color urethane powder coat

Project Enclosed Air Ride Belt Pipe Conveyor

Application Sugar Processing Facility

Customer Cargill Corporation

Platform Material 10 ga. carbon steel

Pipe Material 16" Schedule 40 pipe

Conveyor Type Enclosed Air Ride Belt with Plenums

Engineering

3D Manufacturing prints

Custom manufacturing process fixtures

Size 1200 running feet

Production

Processes

Cutting

Welding

Grinding

Drilling

Tapping

Sandblasting

Finish Custom color urethane powder coat

Call 800-896-7886

or email us

for questions or

an estimate

on your project

Click here for more photos and descriptions of this project
